Product Description:
The atomizer atomizes the test solution. The atomizer is an important part of the atomization system, and its performance has a significant impact on the precision of the measurement and chemical interference. Therefore, the atomizer is required to have a stable spray, small, uniform and high atomization efficiency.
Mainly used to treat various upper and lower respiratory diseases, such as colds, fever, cough, asthma, sore throat, pharyngitis, rhinitis, bronchitis, pneumoconiosis and other diseases that occur in the trachea, bronchi, alveoli, and chest cavity. Nebulized inhalation therapy is an important and effective treatment method in the treatment of respiratory diseases. A nebulizer is used to atomize the liquid medicine into tiny particles, and the medicine enters the respiratory tract and lungs through breathing inhalation, so as to achieve painless , The purpose of rapid and effective treatment. The atomizer is suitable for children, children, the elderly, patients with special diseases, and adult students.
Product Features:
1) The fog is large, the atomized particles are fine, the particles can reach 3.7μm, and the drug absorption is more complete;
2) Microporous spray sheet, atomization speed ≥0.25ml/min;
3) Through piezoelectric components, low-noise design is more silent;
4) The minimum capacity of the medicine cup is about 0.5mL and the maximum is 10mL, and the residual liquid is less than or equal to 0.5ml. It is economical to use, and the micro-mesh cleaning function prevents the micro-mesh from clogging;

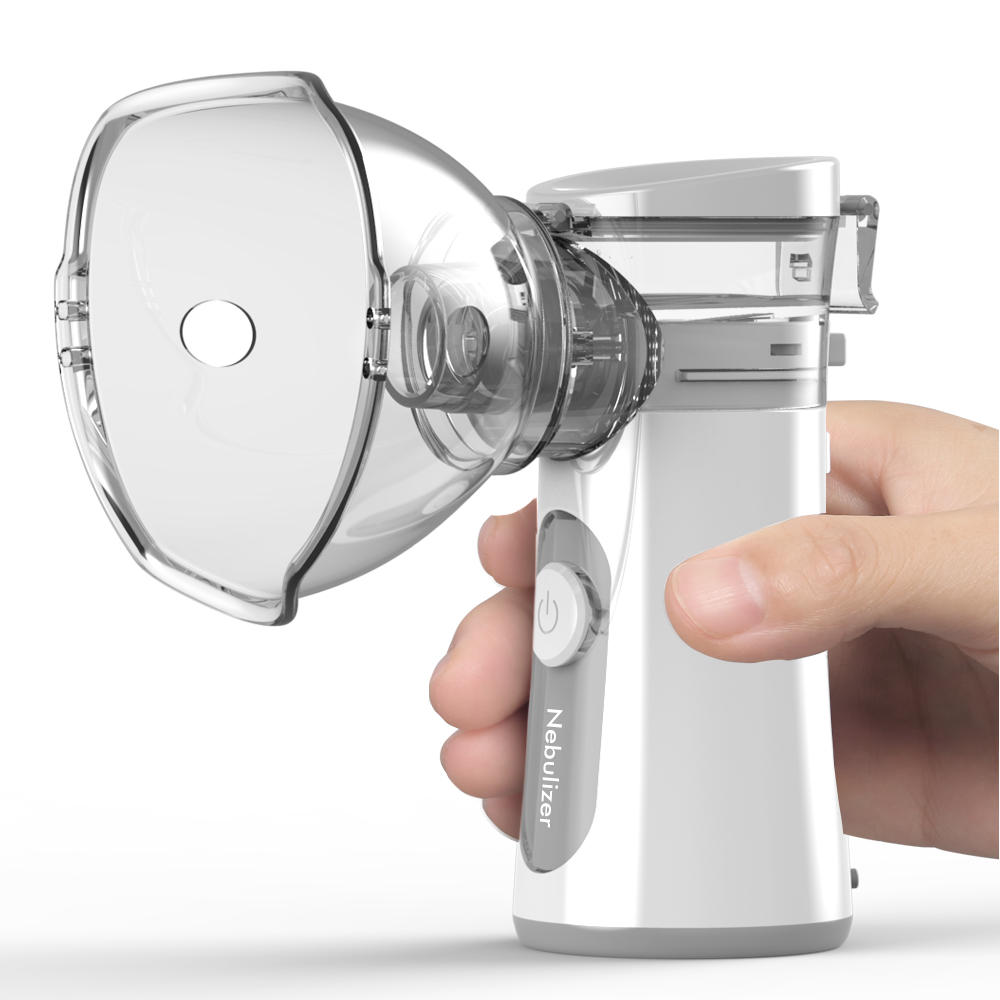

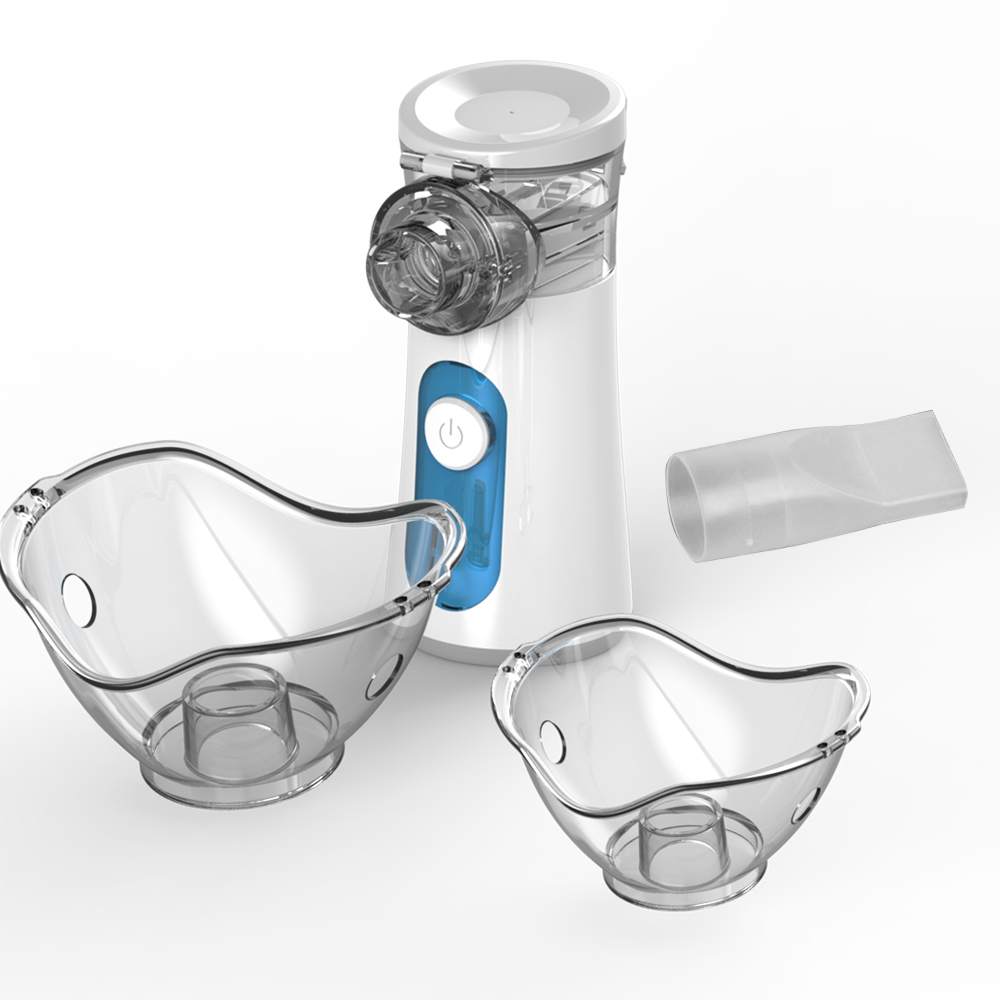

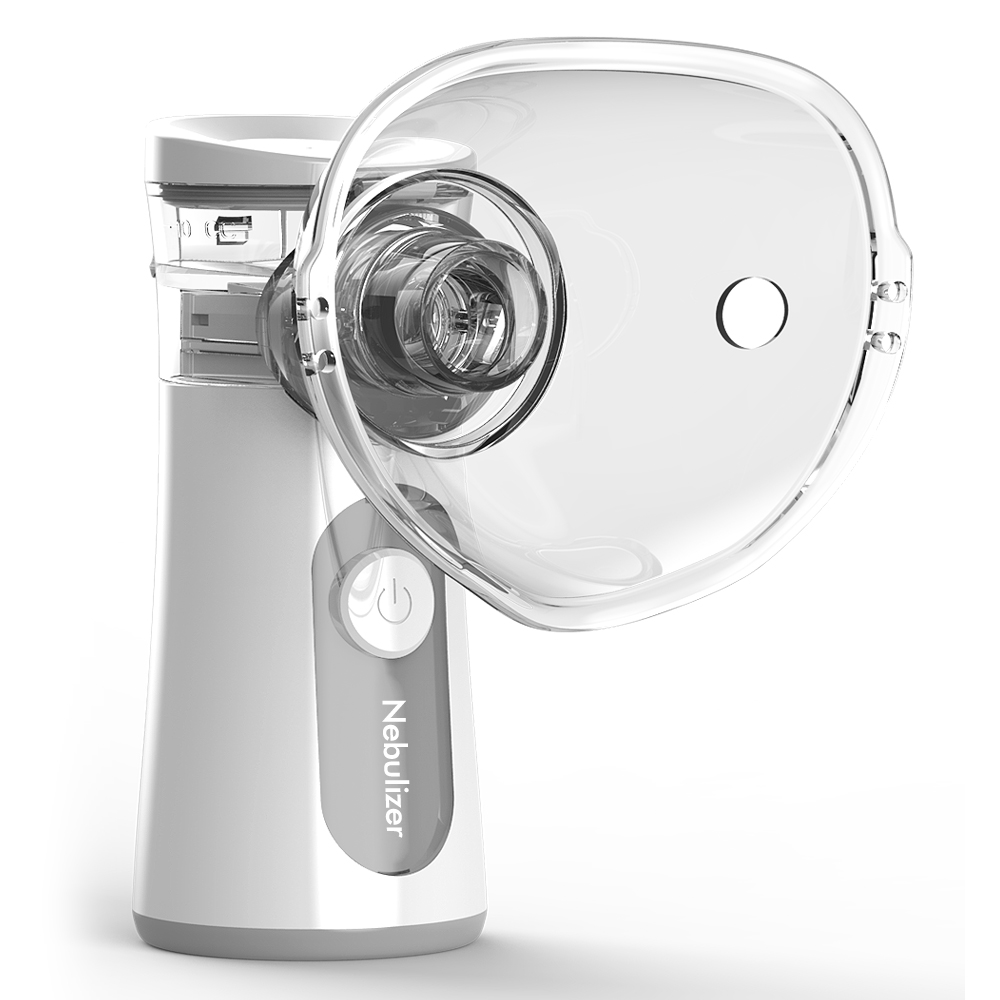

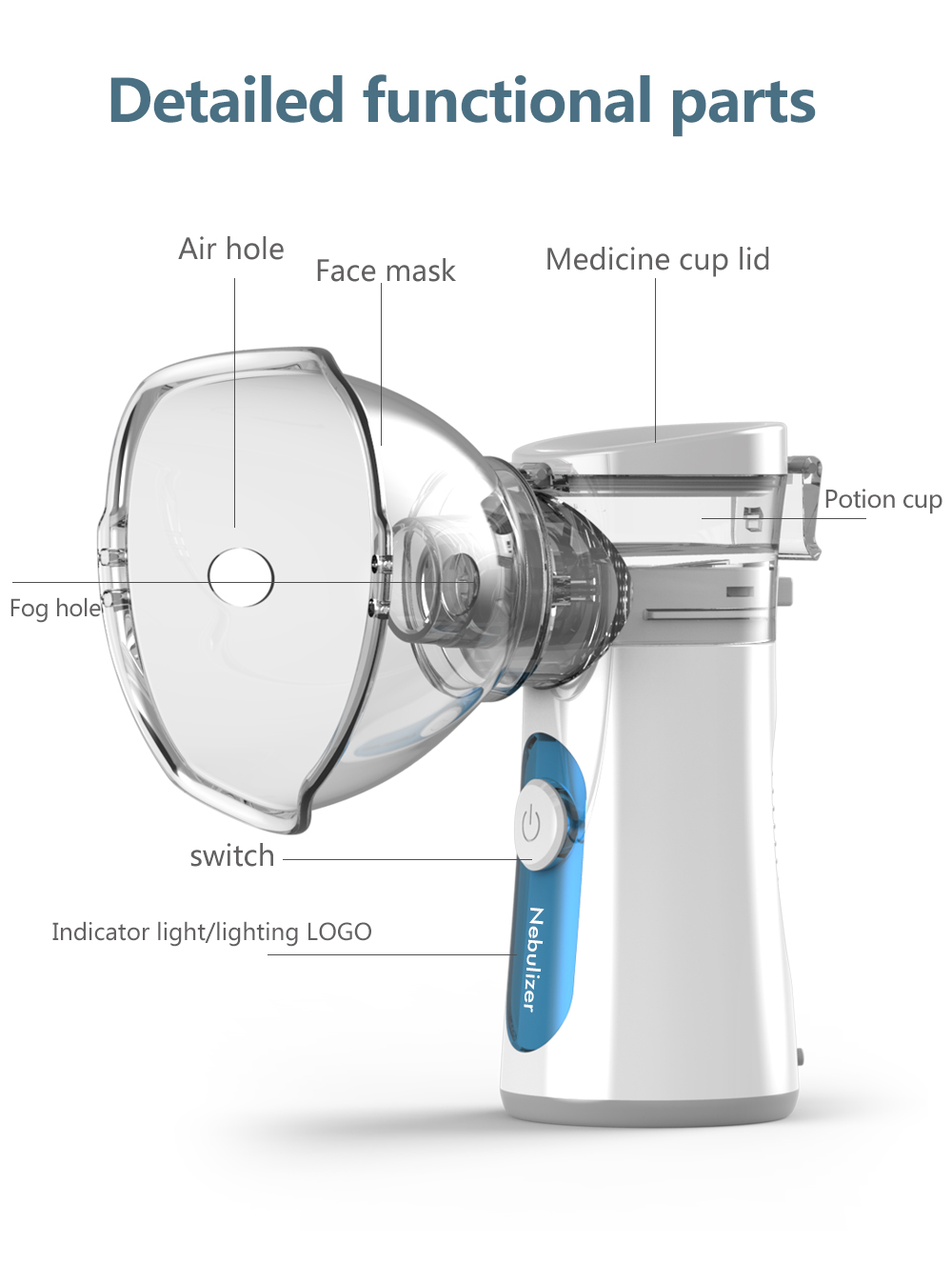

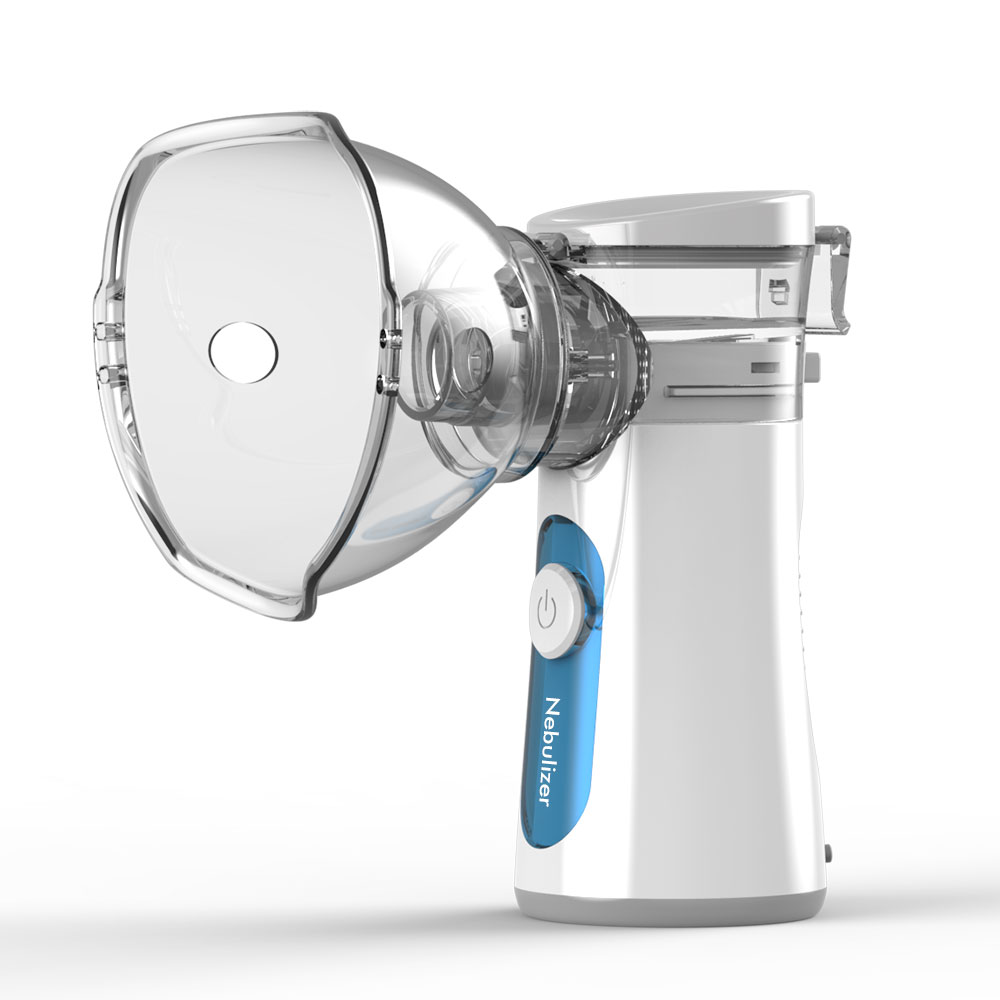

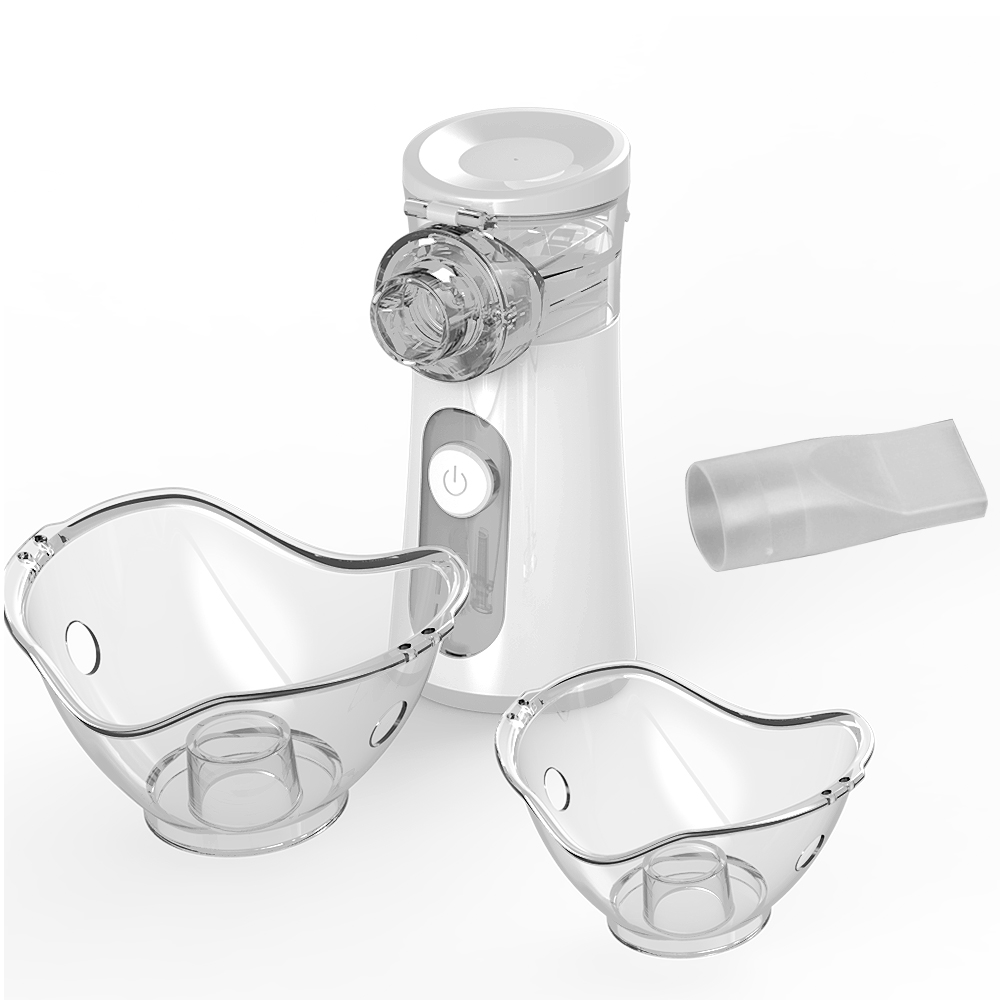

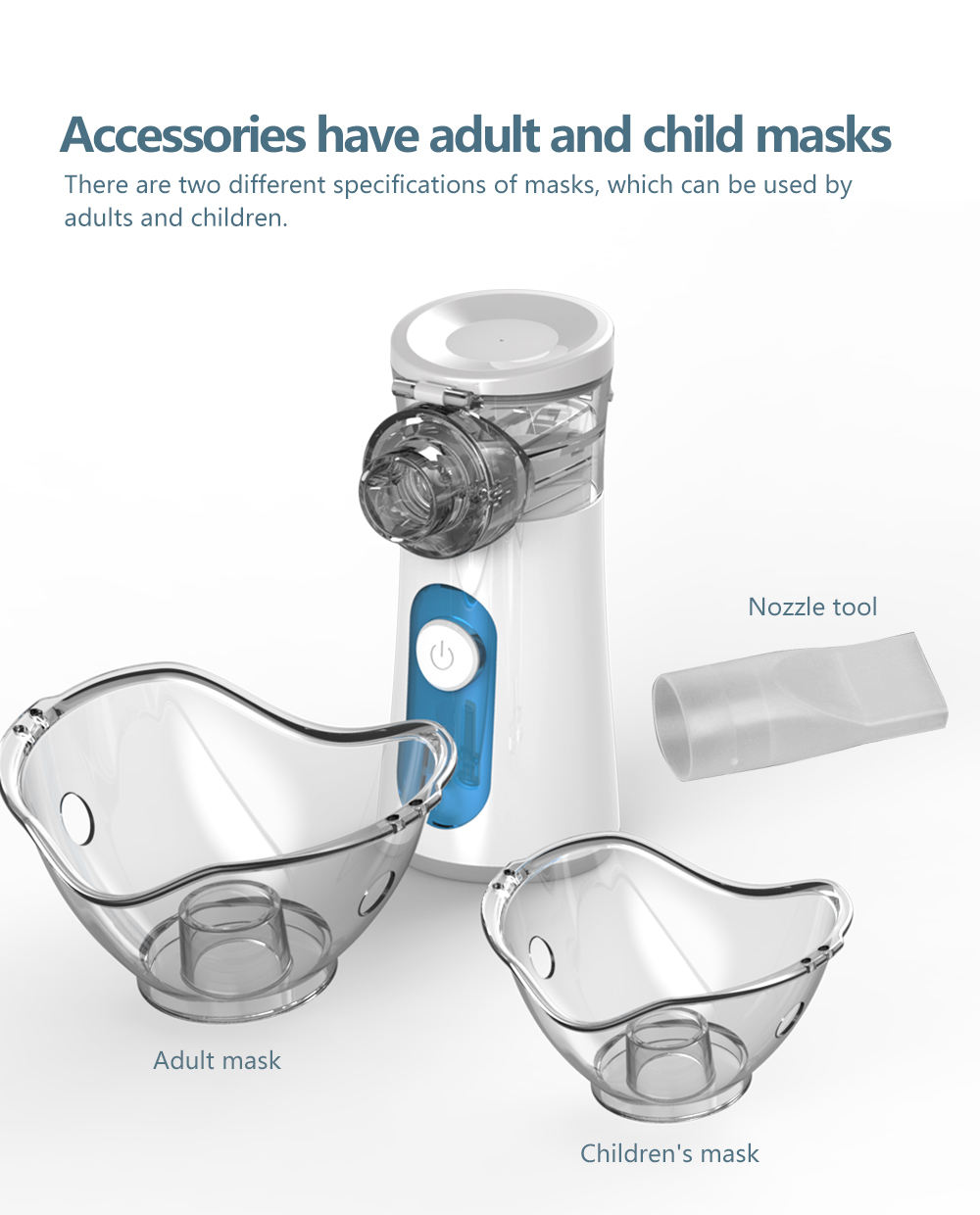

5) Two atomization methods can be selected according to different situations, namely, mask atomization (divided into human and child masks) and mouthpiece atomization;
6) The face mask is comfortable, skin-friendly and environmentally friendly;

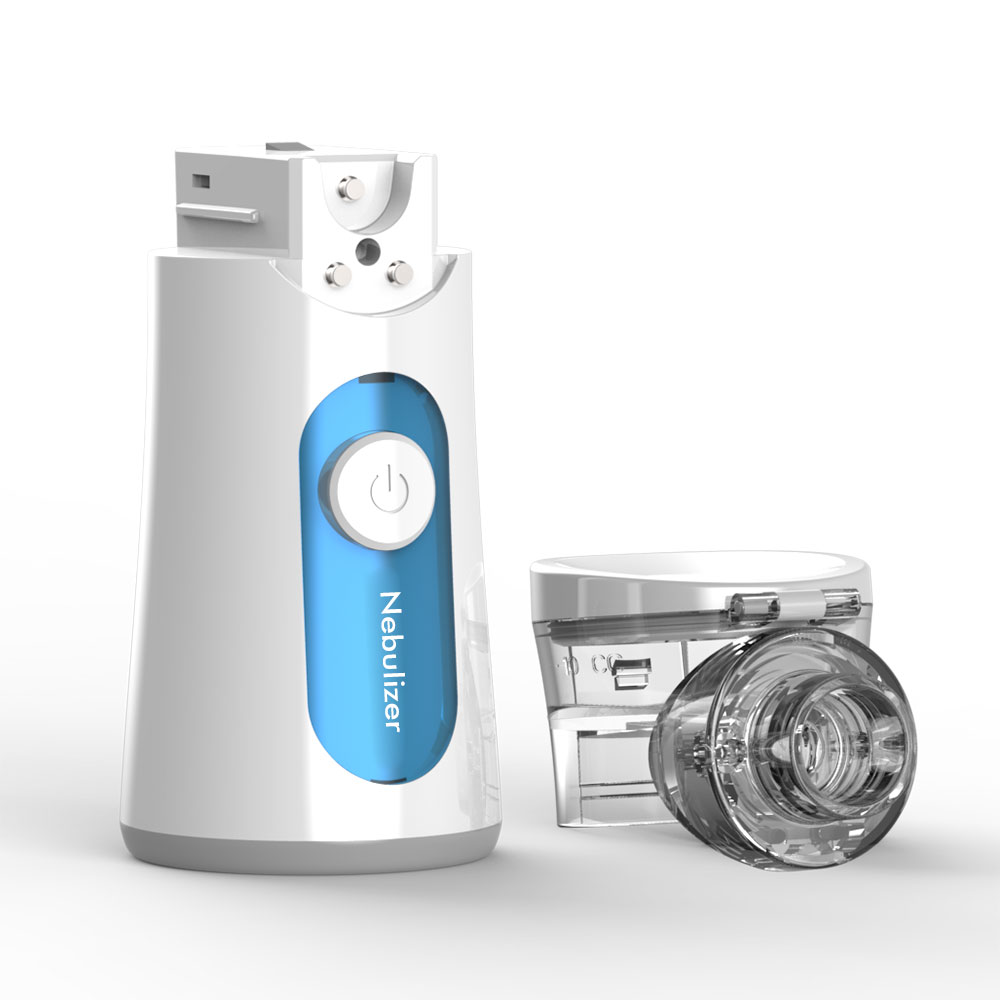

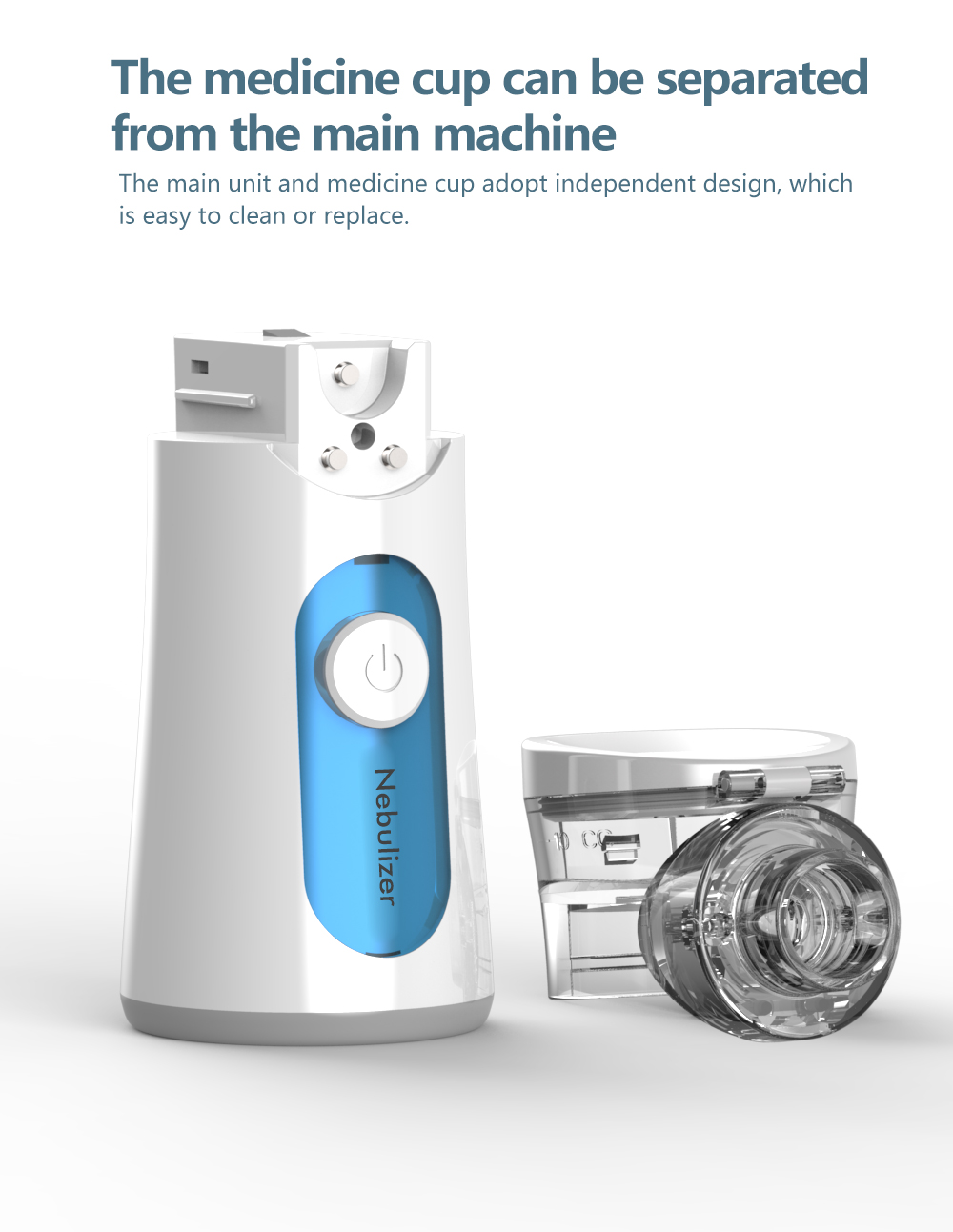

7) Independent atomization components, easy to clean, one-click disassembly, easy to clean and disinfect, and avoid cross-infection;
8) When there is no liquid medicine in the cup or the voltage is insufficient, it will automatically shut down;

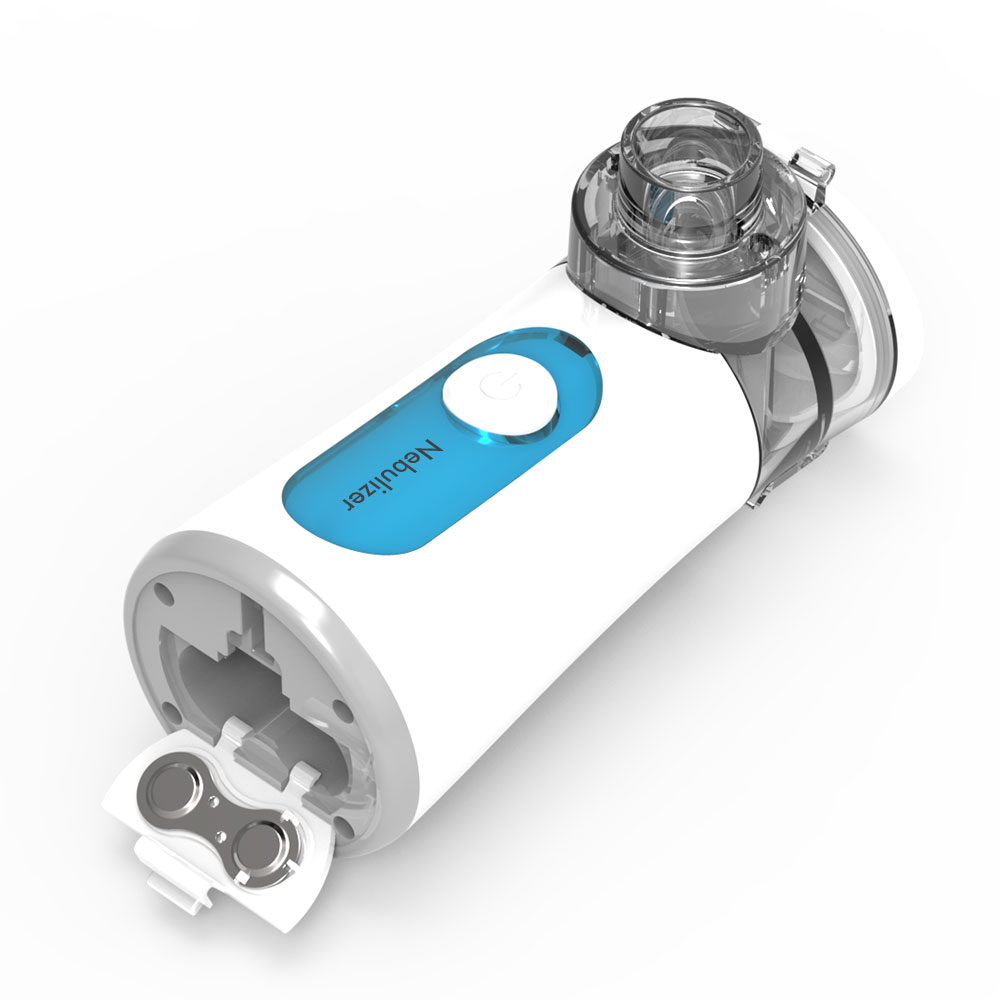

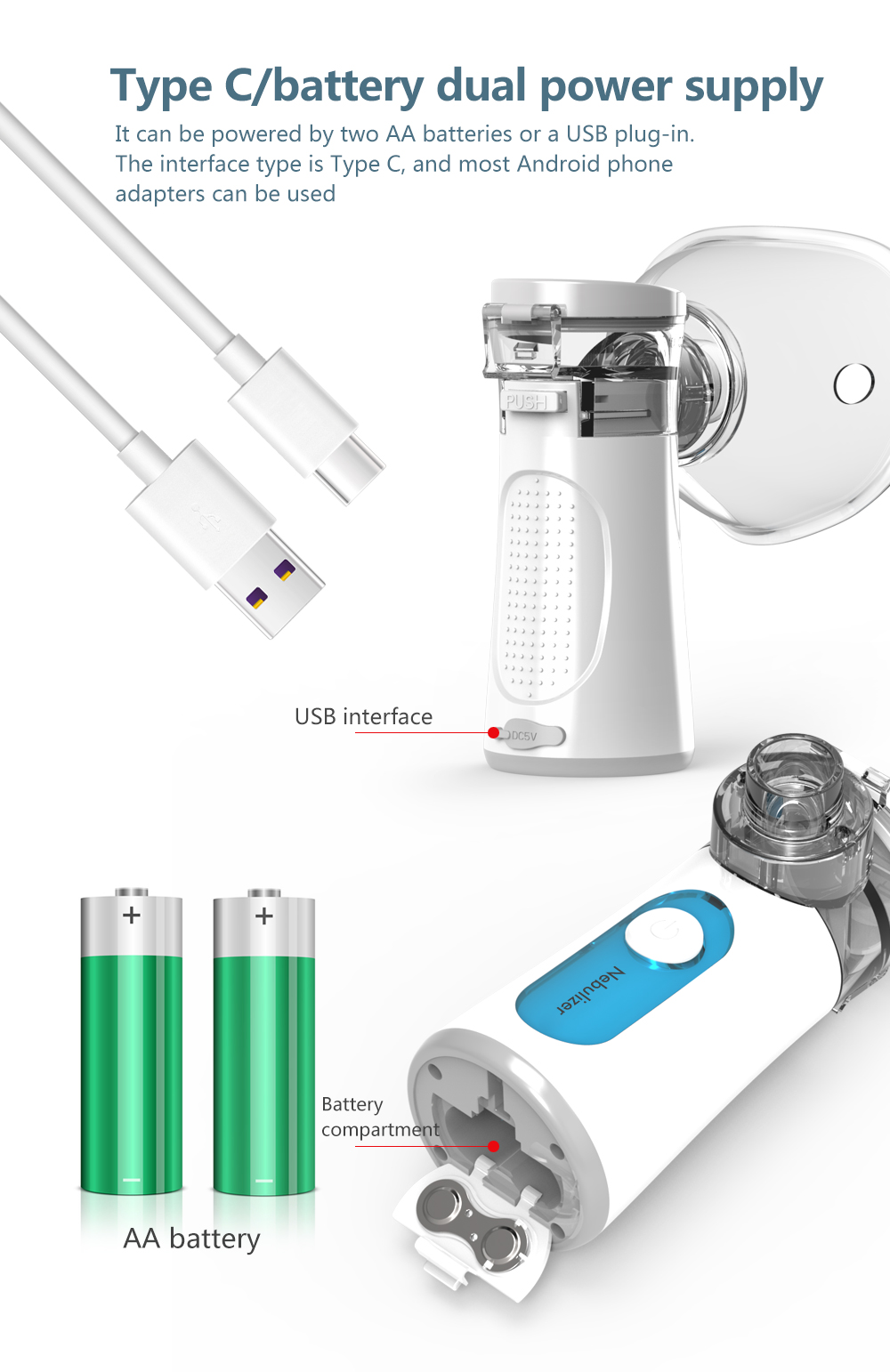

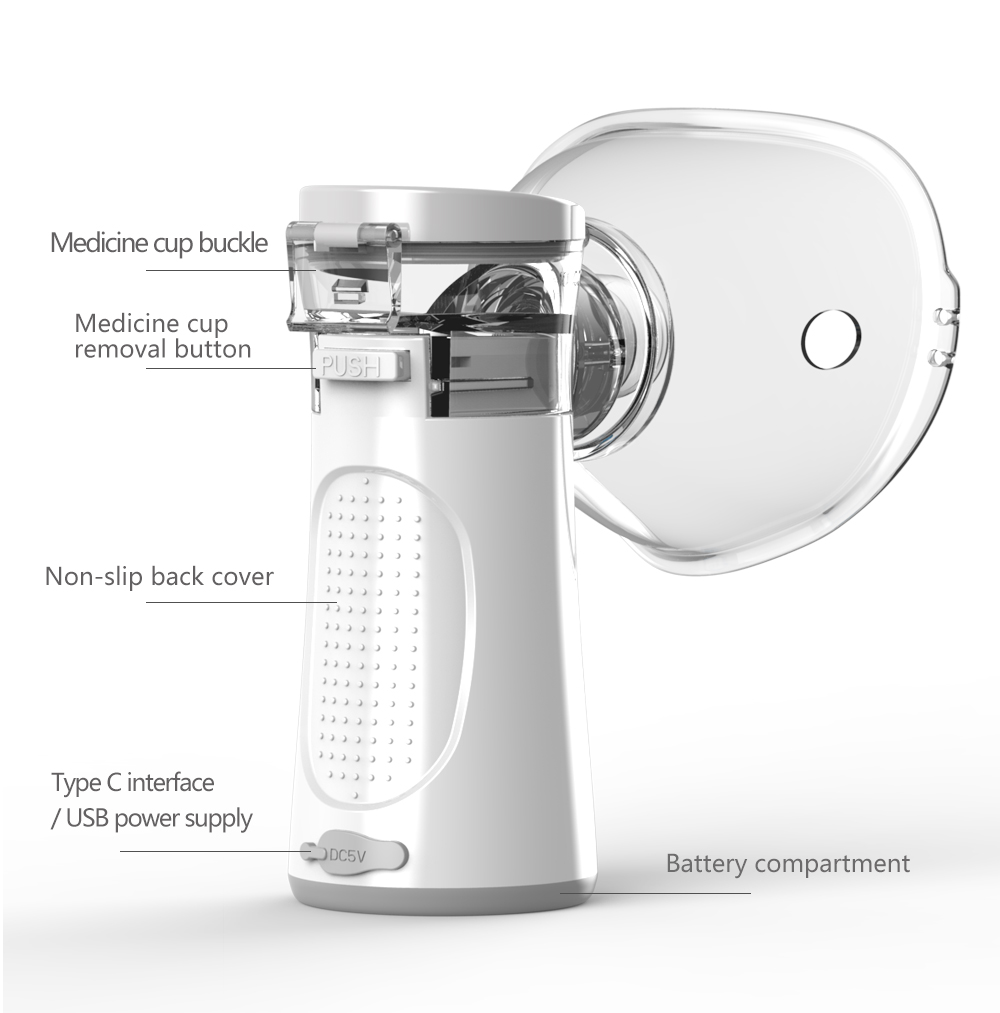

9) 2 kinds of power sources, convenient for home travel, use 2 AA alkaline batteries or use USB power adapter cable.

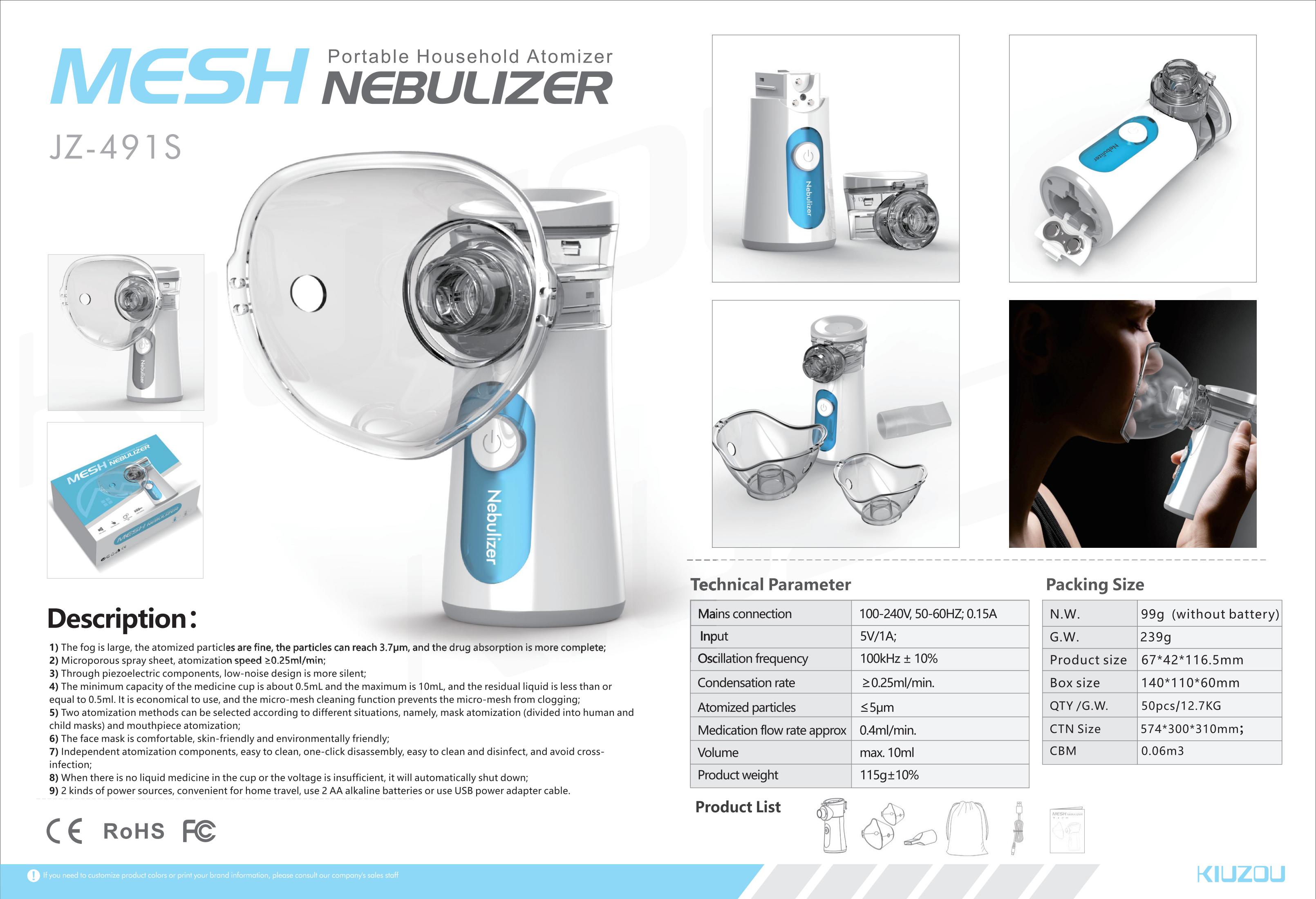

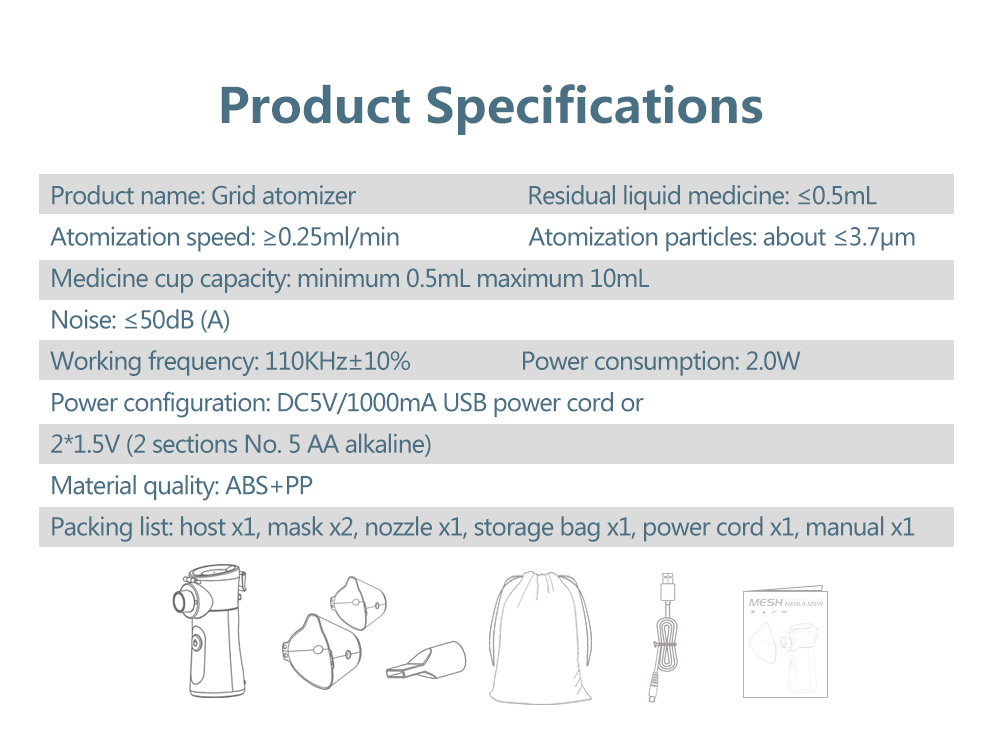

Product Parameters:
Mains connection: 100-240V, 50-60HZ; 0.15A
Input: 5V/1A;
Oscillation frequency: 100kHz ± 10%
Condensation rate: ≥0.25ml/min.
Atomized particles: ≤5μm
Medication flow rate: approx. 0.4ml/min.
Volume: max. 10ml
Product weight: 115g±10%
Size (LxWxH): 50 X 45x120mm
Housing material: ABS+PP
Operating conditions: Temperature: +5℃～+4℃; Relative humidity: <80% non-condensing
Storage and transport conditions: Operating conditions: Temperature: -10℃～+45℃; Relative humidity: <80% non-condensing
